Sentinel 2 SR

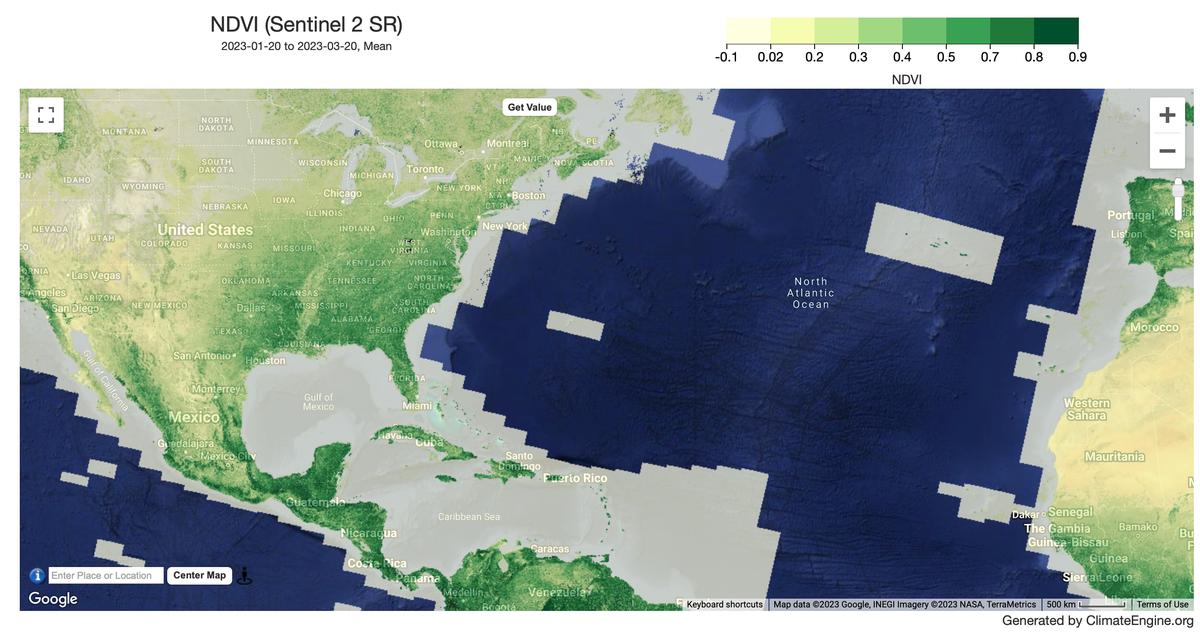

Example Normalized Difference Vegetation Index (NDVI) Map
Example Normalized Difference Vegetation Index (NDVI) Map

Remote Sensing · Climate Engine ID: SENTINEL2_SR

Dataset specifications

Spatial resolution 10m
Temporal frequency 5 Day
Geographic coverage Global
Period of record 2015–Present

Overview

Reflectance data from the Copernicus Sentinel-2 satellite is available for top-of-atmosphere(TOA) and for the earth surface reflectance(SR) in visible, near, and short wave infrared bands. Several vegetation indices are constructed from these bands such as NDVI, EVI, NDSI, NDWI.

Variables

34 variables available.

API variable documentation

Variable Units
AVI —
Blue —
Blue/Nir ratio —
BSI —
DVI —
EVI —
False Color —
FCVI —
Green —
Green/Blue ratio —
Green/Nir ratio —
Green/Red ratio —
MCARI2 —
MSAVI —
NBR —
NDCI (Red_Edge,RED) —
NDRE —
NDSI —
NDVI —
NDWI (Green/SWIR2) —
NDWI (Green/NIR) —
NDWI (Green/SWIR1) —
NDWI (NIR/SWIR1) —
NDWI (SWIR1/Green) —
NIR —
Red —
Red/Blue ratio —
Red/Nir ratio —
SAVI —
SWIR1 (1.610 um) —
SWIR2 (2.190 um) —
SWIR3 (1.375 um) —
True Color —
VSDI —

Source and access

Source catalog: Earth Engine Catalog

Earth Engine assets

  • COPERNICUS/S2_SR_HARMONIZED

Usage and attribution

Processing notes

  1. ClimateEngine applies the Cloud Score+ cloud mask produced by Google. We use the 'cs' band which provides 'pixel quality score based on spectral distance from a (theoretical) clear reference' set at a quality score of 60.

References

  1. Drusch, M., Del Bello, U., Carlier, S., Colin, O., Fernandez, V., Gascon, F., Hoersch, B., Isola, C., Laberinti, P., Martimort, P., Meygret, A., Spoto, F., Sy, O., Marchese, F., & Bargellini, P. (2012). Sentinel-2: ESA's Optical High-Resolution Mission for GMES Operational Services. Remote Sensing of Environment, 120, 25-36. https://doi.org/10.1016/j.rse.2011.11.026

Terms of use

The use of Sentinel data is governed by the Copernicus Sentinel Data Terms and Conditions.
